BlendFighter (Rigged)

Description

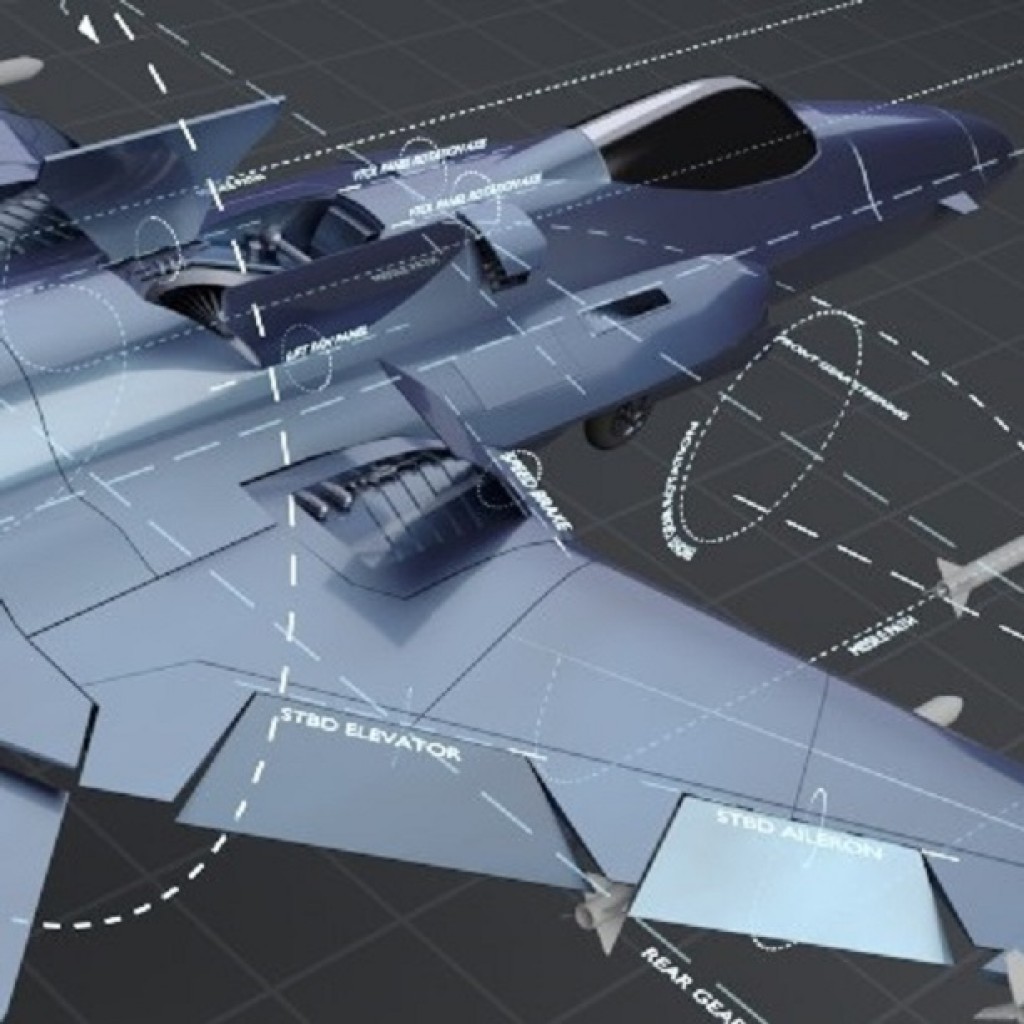

A rigged fighter aircraft model. It's my own design, but it draws heavily on the F-35, X-29, and Russian Su-47. Drag the various control arrows on their axes to operate the rig.

This was created for a tutorial on CGCookie.com:

[Tutorial Link](http://cgcookie.com/blender/cgc-courses/mechanical-rigging-fighter-jet-blender/)

NOTE: This model is released CC-BY-NC-SA; it's intended for educational use and may not be used commercially without prior approval from CGCookie.com.

Comments (22)

N
nephilim over 11 years ago

OH SHIT THIS IS AWESOME

F
floydkids over 11 years ago

It is really cool!

K
KBStudio over 11 years ago

can i use this beautifully modelled work for my game ? ill write your name in the credits under modell artists -> this jet :D would be really asomwe

C
ChrisKuhn over 11 years ago

Glad you like it... thanks! Per my agreement with CGCookie, I can release the model here on Blendswap for any non-commercial use. If you want to use it commercially, however, then you need to obtain permission from them(support@cgcookie.com). Thanks!

R
RikSavage over 11 years ago

Excellent work bud. This rig is amazing

S
Sakrecoer over 11 years ago

Thank you! you rock KuhnIndustries! love your work!!!

S
sendinthejagdpanther over 11 years ago

I haven't had chance to open this blend yet, but from what i remember this is a really awesome aircraft design. I've seen some of your demonstrations with it and tutorials, it's great to see it released. really appreciated. And including rigging for others to learn from is a great bonus. Thanks P.s. 2 megabytes, well done on making the file so small

J
jesus25 over 11 years ago

Que gran Obra amigo de verdad Espero y sigas muy bueno saludos...

C
cbas over 11 years ago

super cool model and rigging. I'm going to do some camera tracking with this baby taking off :)

C
cbas over 11 years ago

one crit though... when I started animating it I noticed the rigging is a bit off in the pitch control. the wing pitches up while the tail pitches down and vice versa. that region needs attention/re-rigging this setup only works in a canard wing concept

C
ChrisKuhn over 11 years ago

That's actually not true. If you look at [fighters taking off] (http://st.gdefon.com/wallpapers_original/wallpapers/427092_vzlet_bort-avianosca_2000x1312_(www.GdeFon.ru).jpg), they have their flaps down and the horizontal stabilizers are pointing toward the ground. The horizontal stabilizers are barely used in the air, but they still perform the same function. You can see it slightly in [this high-G turn] (http://www.vistawallpaper.org/vista-wallpapers/high-g-turn.jpg). The reason it isn't more pronounced is that at higher speeds, you get a lot of effect with only a small movement of the control surface. Ideally, these surfaces would be independently rigged... but I built this for a [tutorial] (http://cgcookie.com/blender/cgc-courses/mechanical-rigging-fighter-jet-blender/), so I chose simplicity over perfection :) Feel free to improve it and share! -Chris-

E
erikscott over 11 years ago

Most modern fighters use both tailerons (That is, a fully moving horizontal stabilizer that has both ganged and differential control for pitch and roll control respectively) and ailerons on the wings exclusively for roll control. Flaps (The control surfaces on the inboard section of the wing's trailing edge) are used to [increase the overall lift coefficient of the wing](http://flysafe.raa.asn.au/groundschool/flapcl.gif), which is useful at slow speeds such as takeoff and landing where the [dynamic pressure](http://en.wikipedia.org/wiki/Dynamic_pressure) is low. These are independent of elevator control, and are almost never done deferentially. And the horizontal surfaces are MOST CERTAINLY used in high speed flight. Their movements might be reduced at higher speeds, however, as they offer a lot more authority; more than the pilot or aircraft could handle. On some aircraft (The F/A-18 comes to mind) the ailerons are dropped together when the flaps are deployed to their lower position, further increasing lift. The ailerons still function is this condition, though their positions have simply been offset. The elevators may be further up at low speeds, but again, this is independent of flap position; the elevator is merely trimmed for low speed flight. Flaps may occasionally be used in other flight conditions. For instance, the pilot may make a sudden, large pitch-up command. The flaps may deploy briefly to provide the extra lift to initiate the maneuver, but are then washed out. This is all handled by the control system and is transparent to the pilot. Again, I want to stress that this is due to flight conditions and pilot commands, and not a link between flap and elevator positions.

C
ChrisKuhn over 11 years ago

Err... yeah. What Eric said :)

R
rince1 over 11 years ago

thanks

S
samstrong69 over 11 years ago

Awsome

T
TARDISMaker about 11 years ago

Wow, this is awesome. I love the rig. I'm planning on using it with some of the new video copilot city footage for a flyover. It should be pretty awesome.

A
atzibala over 10 years ago

Great tutorial and model. No textures?

A
Astro1derboy almost 10 years ago

Chris, I've learned a lot just by nosing around your .blend files. I love your earlier tuts. Would love to see more. Keep up the great work!

T
ThunderOwl over 7 years ago

Thank you for this sharing! Not going to use it anywhere "as is", but it sure can be a lot of learning material for Blender beginner like I am.
